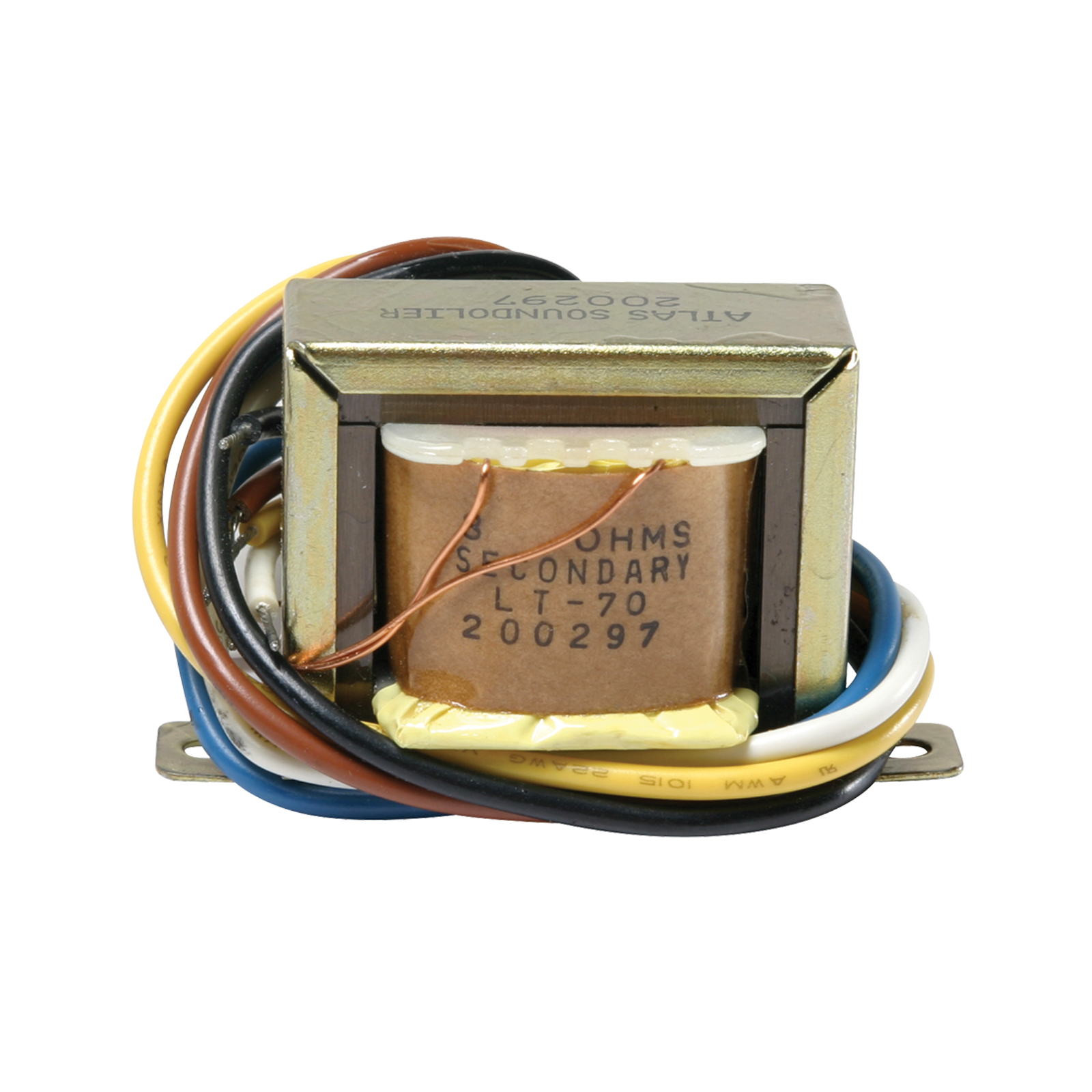

LT70 General Purpose Transformer 70.7V
Please sign in so that we can notify you about a reply
The LT70 General purpose transformer provides economical matching of speakers for most distributed sound applications.The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz.Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-70 is designed for use with 70.7-volt lines.
Features
- 70.7V Line Matching Transformer
- Compact Footprint
- Frequency Response 100Hz - 10kHz
Specifications
- Frequency Response 100Hz - 10KHz
- Power Taps .5, 1, 2 & 5
- Power Rating 5W
- Primary Voltage 70.7
- Height1 3/8" (3.4925 cm)
- Width1 3/4" (4.36626 cm)
- Depth3/4" (1.82626 cm)
- Shipping Weight 0.50 lbs (0.23 kgs)
- Warranty Period 60 months from date of purchase
Brand:
Atlas IED
Product Type:
General Purpose Transformer
Specifications
Special Features:
Compact Footprint
Power Rating:
5W
For Use With:
Speaker
Performance
Impedance Rating:
8Ω
Frequency Rating:
100Hz to 10kHz
Dimensions
Width:
4.4cm
Depth:
1.8cm
Height:
3.5cm
Weight:
227g
Shipping Weight:
0.2kg
Other
Voltage Rating:
70.7V
